Hydraulic- magnetic circuit breaker, NDB3-30 Z4 1P Circuit Breaker for Equipment

2023年9月26日Producto de baja tensión 16890

Certificaciones disponibles UL La disponibilidad depende del modelo y la configuración.

Resumen

NDB3-30 is a compact hydraulic-magnetic circuit breaker for equipment, covering low-current AC and DC circuits. It provides overload and short-circuit protection with configurable delay curves and actuator options.

Hydraulic- magnetic circuit breaker, NDB3-30 Z4 1P Circuit Breaker for Equipment

Ventajas del producto

Wide Current RangeRatings from 0.1 to 30 A support control and equipment circuits.

Hydraulic-Magnetic TripThe mechanism provides consistent protection across changing ambient conditions.

Configuración flexibleMounting, terminals, poles and actuator styles can be matched to the equipment.

Certified OptionsConfigurations are available to IEC, EN, UL and related requirements.

Especificaciones típicas

Rated Current	0.1–30 A
Rated Voltage	AC 250 V; DC 65 / 80 V
Poles	1 or 2
Tripping Type	Hydraulic-magnetic
Mechanical / Electrical Life	10,000 / 6,000 operations
Standards	IEC 60934, GB/T 17701, UL 1077, UL 489A

Solo configuración típica. Las potencias nominales definitivas se confirman en función de los requisitos del proyecto.

Aplicaciones

Suitable for automation controls, power supplies, communication equipment, transportation systems and other compact AC or DC equipment circuits.

ÚLTIMO: RCCB SVL1M-63SIGUIENTE: Circuit Breaker for Equipment, Oil damping product NDB3-50 J4 2P, Industrial Automatic Control

Recomendaciones relacionadas

RCBO NDB1LE-63 C63 Tipo A
2024年4月8日 2031
The NDB1LE-63 series of residual current action circuit breakers provide the ground leakage, direct or indirect electric shock by human body and other faults protection, which are applicable to the low -voltage terminal distribution in the industr...
Ver detalles

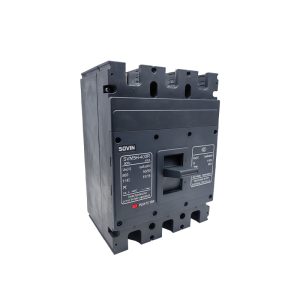

SVM5H-400H/R MCCB de 1000 V CA
