Medium Voltage Metal-Clad Switchgear / MCSG is designed for safe and reliable power distribution in utility, industrial, commercial, and infrastructure projects. With a withdrawable VCB, compartmentalized metal-clad structure, insulated busbar system, mechanical interlocks, and optional arc-resistant design, it provides stable operation for medium-voltage power systems.
| Rated Voltage Range | 5kV–38kV, customizable according to project requirements |
|---|---|
| Typical Voltage Classes | 5kV, 15kV, 27kV, 38kV |
| Main Breaker Type | Withdrawable Vacuum Circuit Breaker, VCB |
| Rated Current | Project-based configuration; options can be selected according to system design |
| Short-Circuit Rating | Project-based configuration; available designs can support high short-circuit withstand requirements |
| Standards | IEEE C37.20.2, IEEE C37.20.7, ANSI / UL project requirements, IEC 62271-200 reference |
Solo configuración típica. Las potencias nominales definitivas se confirman en función de los requisitos del proyecto.
Medium Voltage Metal-Clad Switchgear is used in medium-voltage power distribution systems where safe power control, reliable protection, and stable operation are required. It can be used as incoming switchgear, feeder switchgear, transformer protection switchgear, bus section switchgear, or motor feeder switchgear depending on the electrical system design.

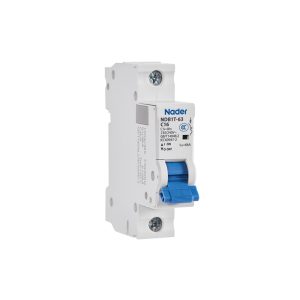

Application ●Short -circuit protection ●Over-load protection ●Isolation NDB1T-63 dedicated to the low voltage power distribution system of industrial, buildings, energy communications and infrastructure. Specification: 1P+N:AC230/240V; 2P：AC400...
Ver detalles

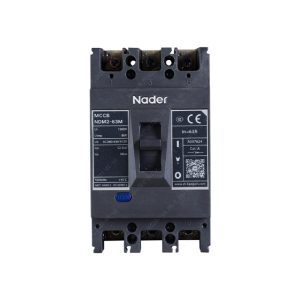

1. Applicable Scope and Purpose of Circuit Breaker The NDM2-63 molded case circuit breaker (hereinafter referred to as circuit breaker) applies to infrequent switching of circuits with the AC 50/60Hz, the working voltage of AC415V and working cu...
