LV Switchgear, also known as UL 1558 Low Voltage Switchgear, is a key low-voltage power distribution product used for receiving, distributing, controlling, and protecting electrical energy in low-voltage systems. It is commonly installed on the low-voltage side of transformers and serves as the primary distribution equipment for downstream switchboards, panelboards, motor control systems, lighting panels, power equipment, HVAC systems, pumps, and other electrical loads.
| Standard Reference | UL 1558, ANSI C37.20.1 |
|---|---|
| Circuit Breaker Type | UL1066 Air Circuit Breaker, ACB |
| Breaker Installation | Withdrawable type available |
| Rated Current | Project-based configuration; high-current busbar options available |
| Short-Circuit / Bus Withstand | Up to 100kA available according to project design |
| Instalación | Indoor electrical room, power distribution center, substation, industrial facility |
Solo configuración típica. Las potencias nominales definitivas se confirman en función de los requisitos del proyecto.
LV Switchgear / UL 1558 Low Voltage Switchgear is widely used in low-voltage power distribution systems that require high reliability, high current capacity, and safe operation. It is typically installed after a transformer and acts as the main low-voltage distribution center for electrical loads.
1. Applicable Scope and Purpose of Circuit Breaker The NDM2-800 molded case circuit breaker (hereinafter referred to as circuit breaker) applies to infrequent switching of circuits with the AC 50Hz, the working voltage of AC690V and working curr...
Ver detalles
1. Applicable Scope and Purpose of Circuit Breaker The NDM2E-100 series of electronic molded case circuit breakers (hereinafter referred to as circuit breakers) apply to infrequent switching of circuits with the AC50Hz, the working voltage of AC...
Ver detalles

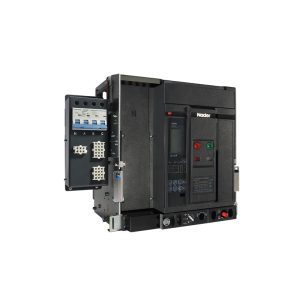

1. Applicable Scope and Purpose The NDQ5W-1600 automatic transfer switching equipment can be applied to the power distribution system with the AC 50Hz/60Hz, the rated working current of 200A~1600A, the rated insulation voltage of 1000 V, the rated...
Ver detalles

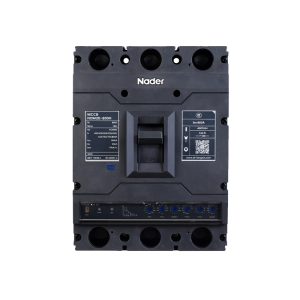

1. Applicable Scope and Purpose of Circuit Breaker The NDM2E-800 series of electronic molded case circuit breakers (hereinafter referred to as circuit breakers) apply to infrequent switching of circuits with the AC 50Hz, the working voltage of A...
